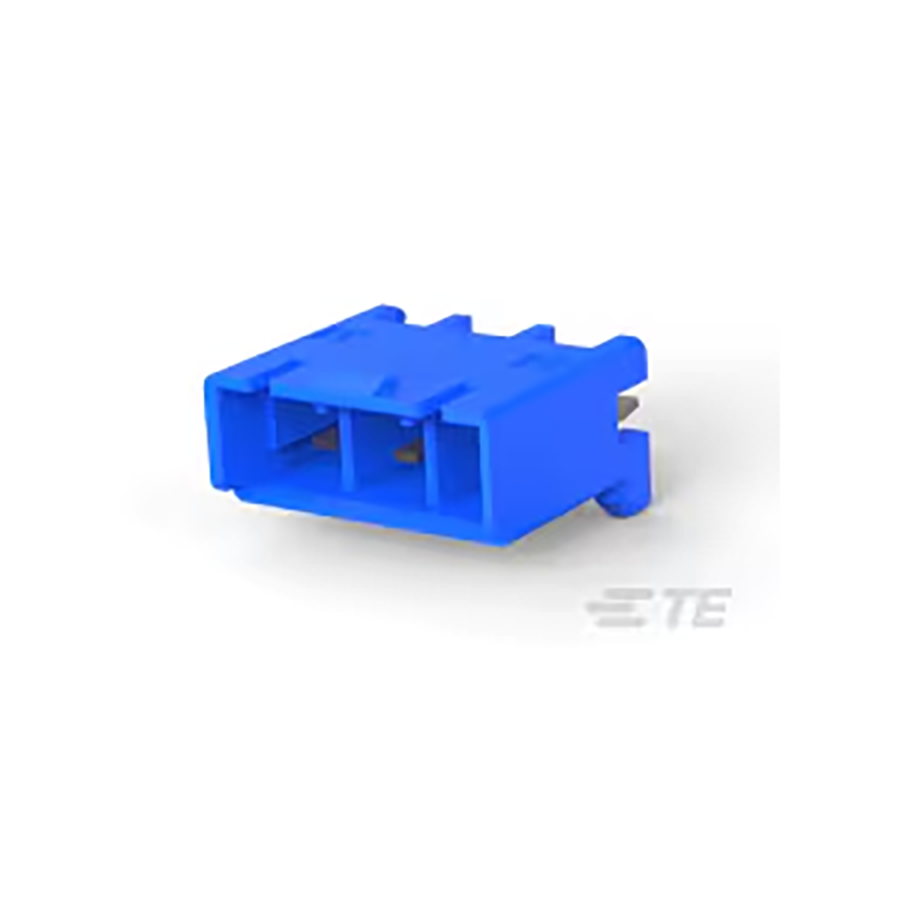

2-1376383-3
Manufacturer:
TE Connectivity
Mfr.Part #:
2-1376383-3
Datasheet:
Description:
Headers and Wire Housings Through Hole Header Number of Positions:3 Pitch:5 mm
| Parameter | Value |
|---|---|
| Length | 16.5862 mm |
| Width | 14.097 mm |
| Termination | Press-Fit |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Height | 13.97 mm |
| Packaging | Bulk |
| RoHS | Compliant |
| Contact Plating | Tin |
| Pitch | 5 mm |
| Current Rating | 10 A |
| Flammability Rating | UL94 V-0 |
| Approvals | CSA |
| Orientation | Vertical |
| Operating Supply Voltage | 300 V |
| Lifecycle Status | Production (Last Updated: 2 weeks ago) |
| Color | Blue |
| Gender | Male |
| Number of Contacts | 3 |
| ELV | Compliant |
| Connector Type | Header |
| Number of Positions | 3 |
| Number of Rows | 1 |
| Housing Material | Nylon |
| Circuit Application | Power |
| Connector System | Wire-to-Board |
| Contact Style | Pin |
| Contact Current Rating | 10 A |
| Housing Color | Blue |
| Plating | Tin |
| PCB Thickness | 63 µm |
| Plating Thickness | 39.36 µm |
| Number of Power Positions | 3 |
| Mating Post Length | 6.2992 mm |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 2 weeks ago) |
| Sealable | No |
| Contact Retention | Without |
| Termination Post Length | 3.5 mm |
Stock: 2507
Distributors
pcbx
pcbxUnit Price$0.28811
Ext.Price$0.28811
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.28811 | $0.28811 |
| 10 | $0.28127 | $2.81270 |
